Charts

We have charts in the terminal!

Presenting numbers, especially when comparing device performance benchmark numbers, can sometimes be clearer if you use a chart instead of a table. In order to use charts, you must specify at least the chart elements that can be described as an array of ChartElement class instances, which is usually set in the Elements property. You can create a new element like this:

var element = new ChartElement()
{
    Name = "Element 1",
    Value = 12,
};

You must specify at least the name and the value to identify your element. However, elements can either have a random color (if the Color property isn't specified) or a specific color. It can also be hidden from view by enabling the Hidden property.

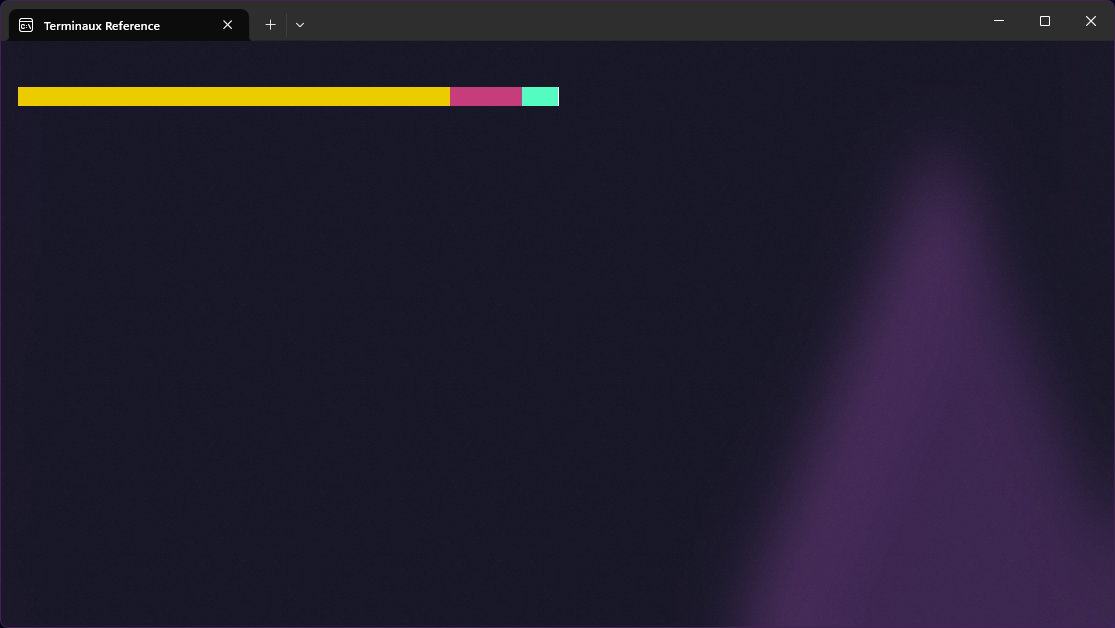

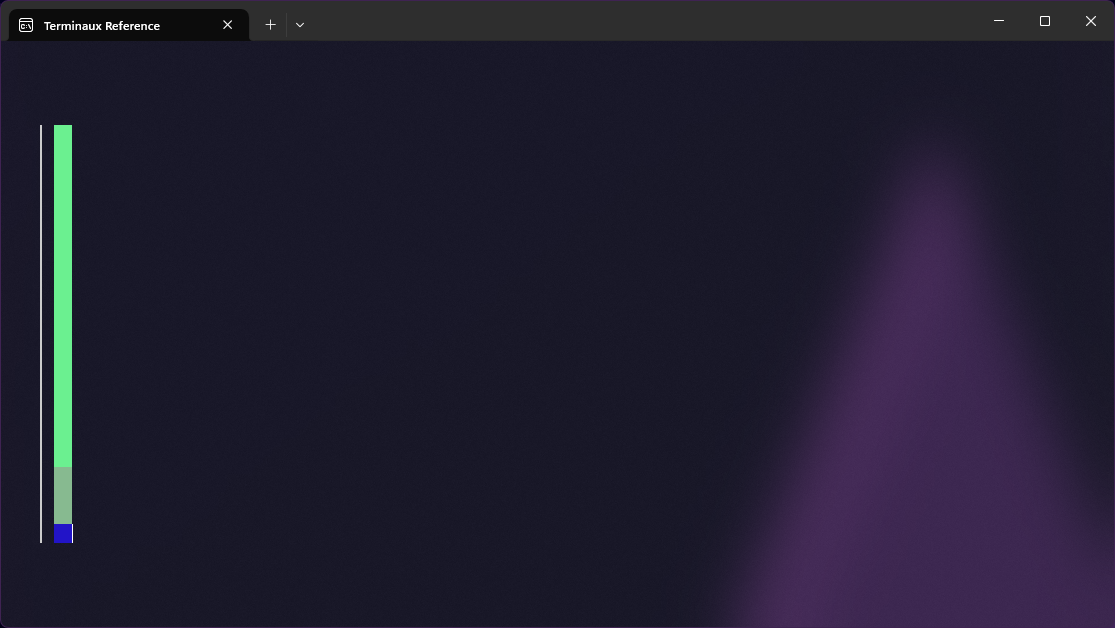

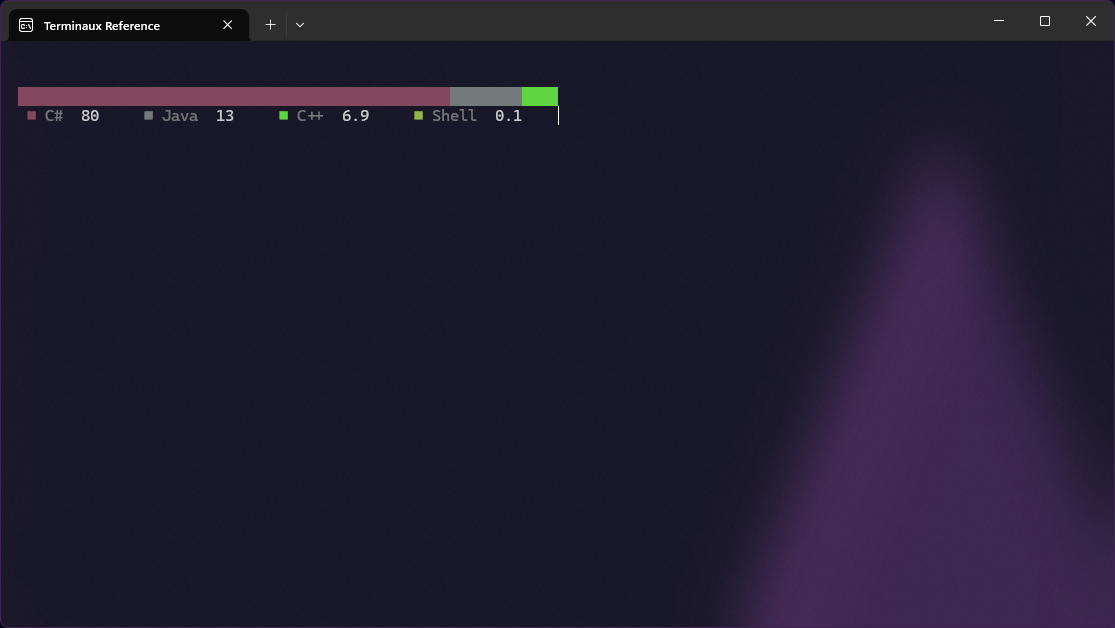

Breakdown chart

This gives you either a horizontal stick or a vertical stick that describes what part of the whole stick has taken per each item. This describes a breakdown of several items that you want to present.

var chart = new BreakdownChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    Showcase = true,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

var chart = new BreakdownChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

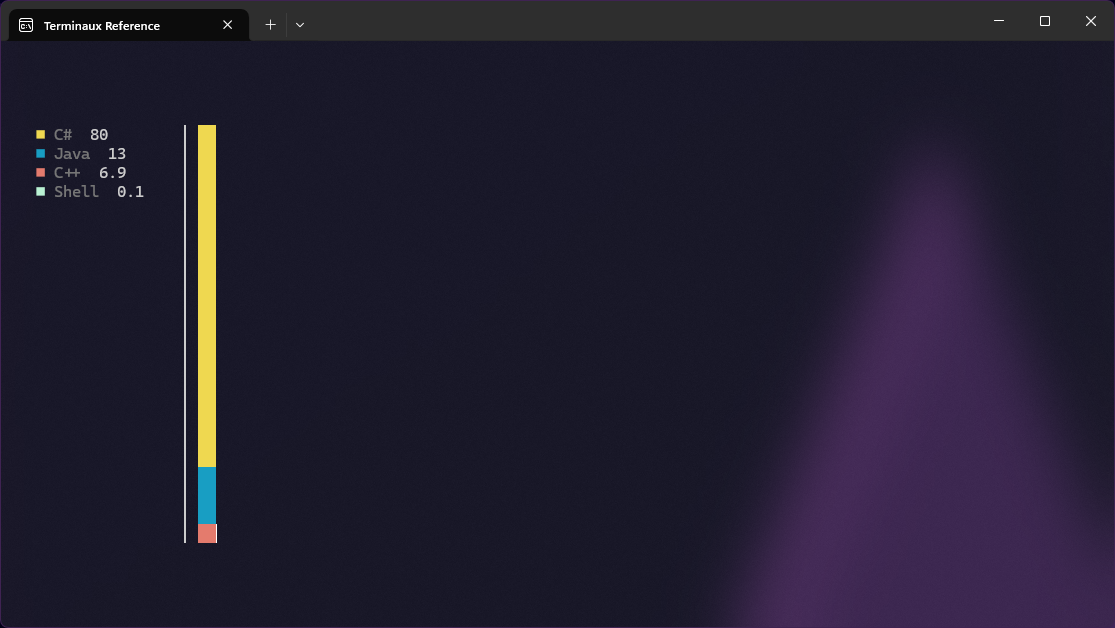

var chart = new BreakdownChart()
{
    InteriorWidth = ConsoleWrapper.WindowWidth - 4,
    InteriorHeight = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Showcase = true,
    Vertical = true,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

var chart = new BreakdownChart()
{
    InteriorWidth = ConsoleWrapper.WindowWidth - 4,
    InteriorHeight = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Vertical = true,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

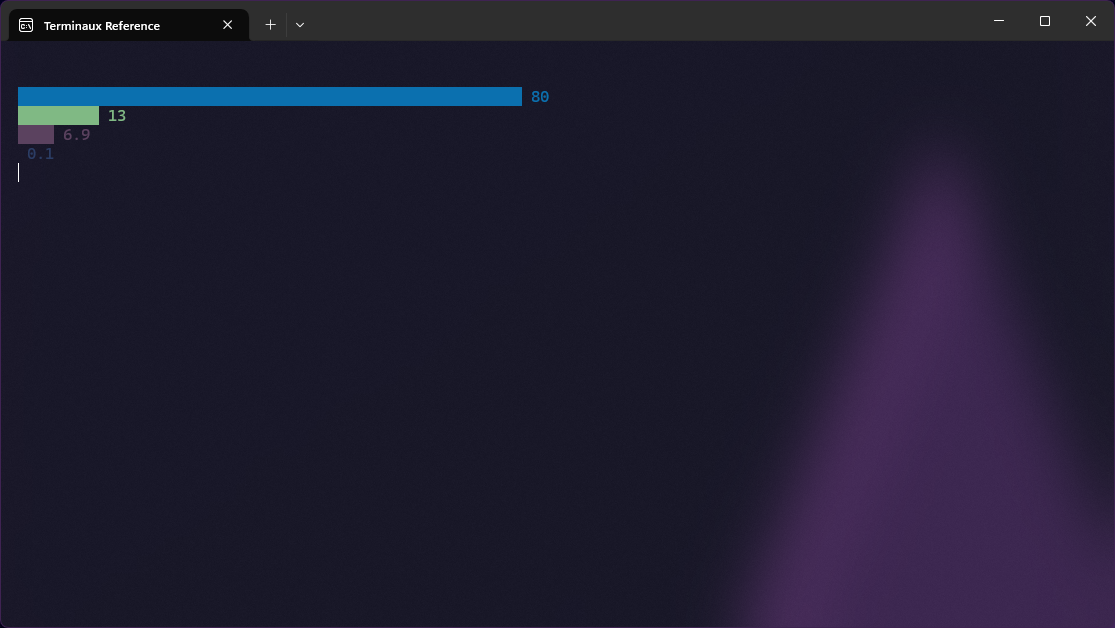

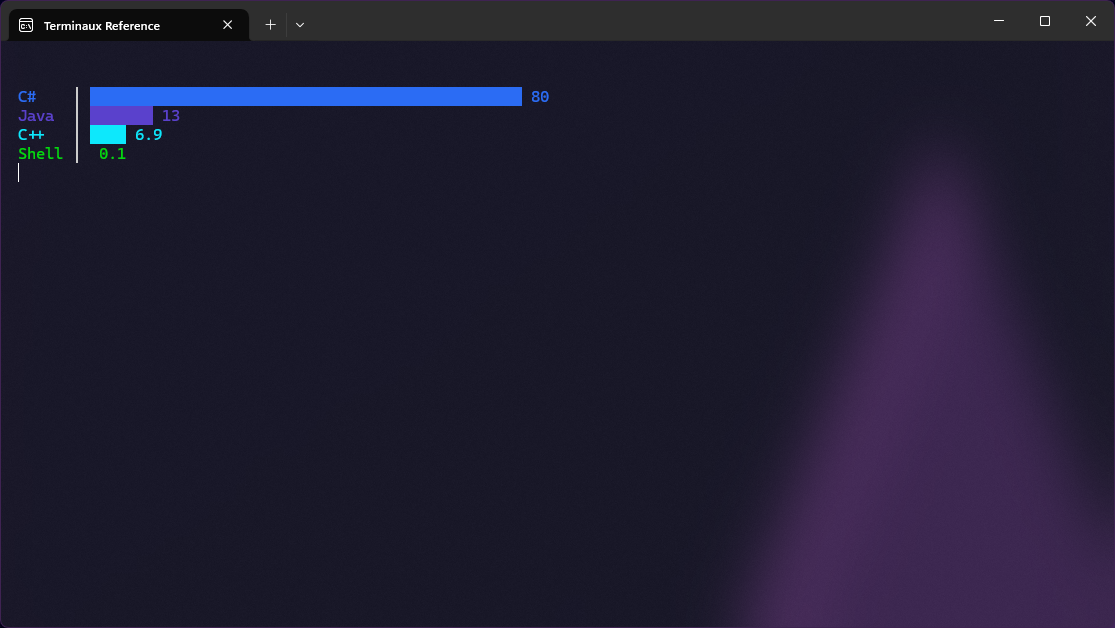

Bar chart

This gives you a horizontal bar chart that allows you to present various numbers in an amazing way for comparison.

var chart = new BarChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    Showcase = true,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

var chart = new BarChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

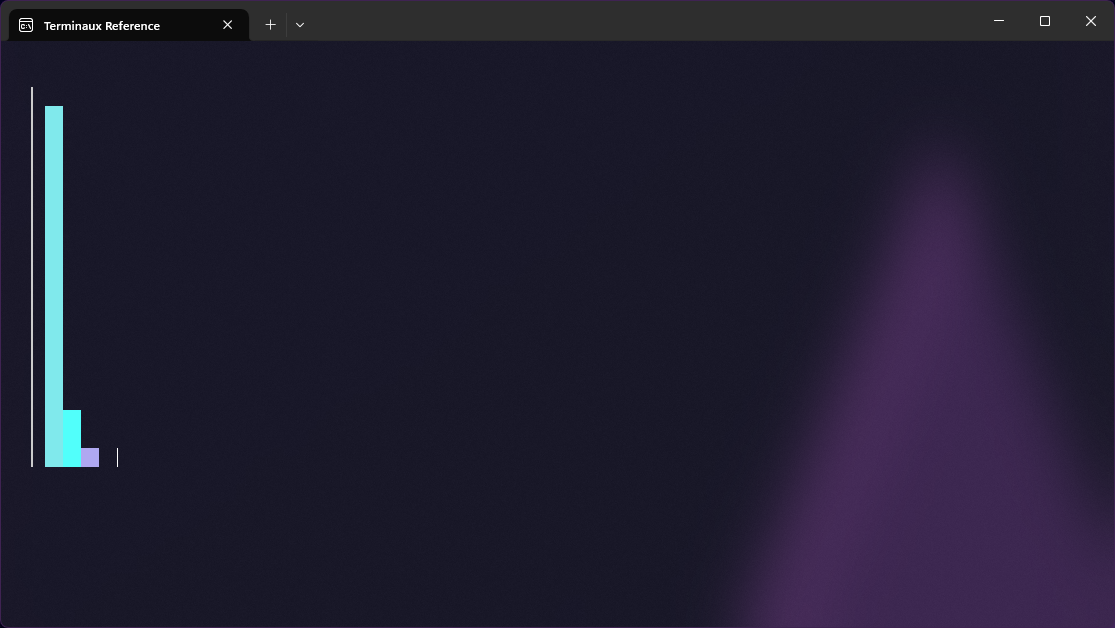

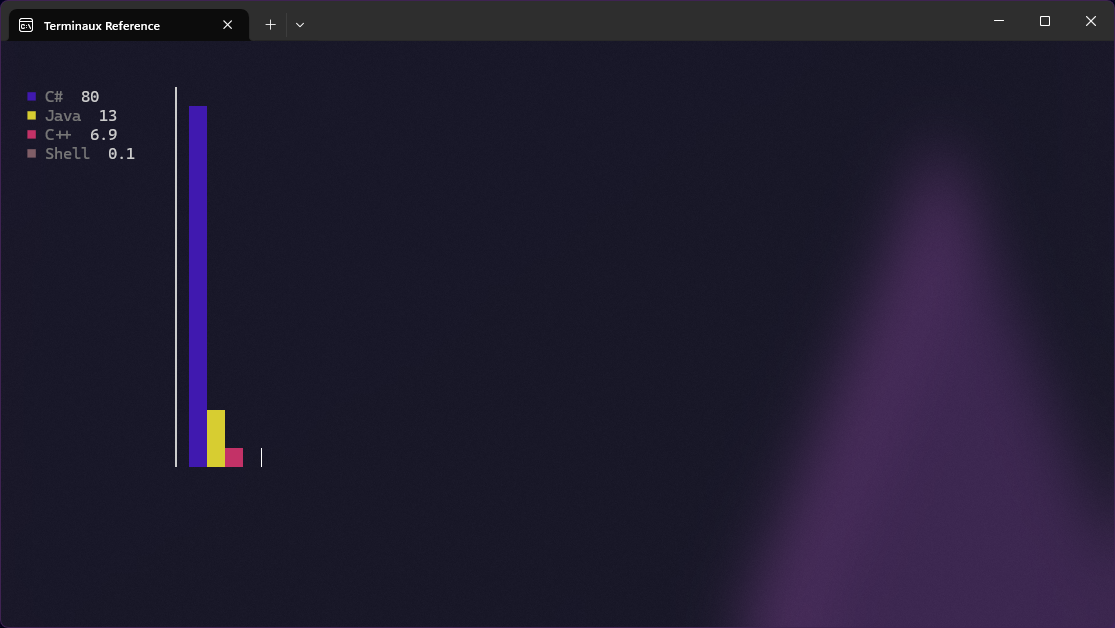

Stick chart

This gives you a vertical bar chart that allows you to present various numbers in an amazing way for comparison.

var chart = new StickChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    InteriorHeight = 20,
    Showcase = true,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

var chart = new StickChart()
{
    Left = 1,
    Top = 2,
    InteriorWidth = 60,
    InteriorHeight = 20,
    Elements =
    [
        new()
        {
            Name = "C#",
            Value = 80,
        },
        new()
        {
            Name = "Java",
            Value = 13,
        },
        new()
        {
            Name = "C++",
            Value = 6.9,
        },
        new()
        {
            Name = "Shell",
            Value = 0.1,
        },
    ]
};
TextWriterRaw.WriteRaw(chart.Render());

Stem and Leaf Chart

This shows you a stem and leaf chart that describes the breakdown of the numbers, with the following conditions:

The stem either represents the digit of tens and greater (if the number is not a decimal) or the numeric part (if the number is a decimal)
The leaf either represents the digit of ones (if the number is not a decimal) or the decimal part with the precision of two decimal digits (if the number is a decimal)

var chart = new StemLeafChart()
{
    Elements =
    [
        789,
        7,
        13,
        14,
        14.4,
        14.8,
        15.4,
        16.7,
        16.8,
        17.26,
        17.4286,
        18.345,
    ],
};
TextWriterRaw.WriteRaw(chart.Render());

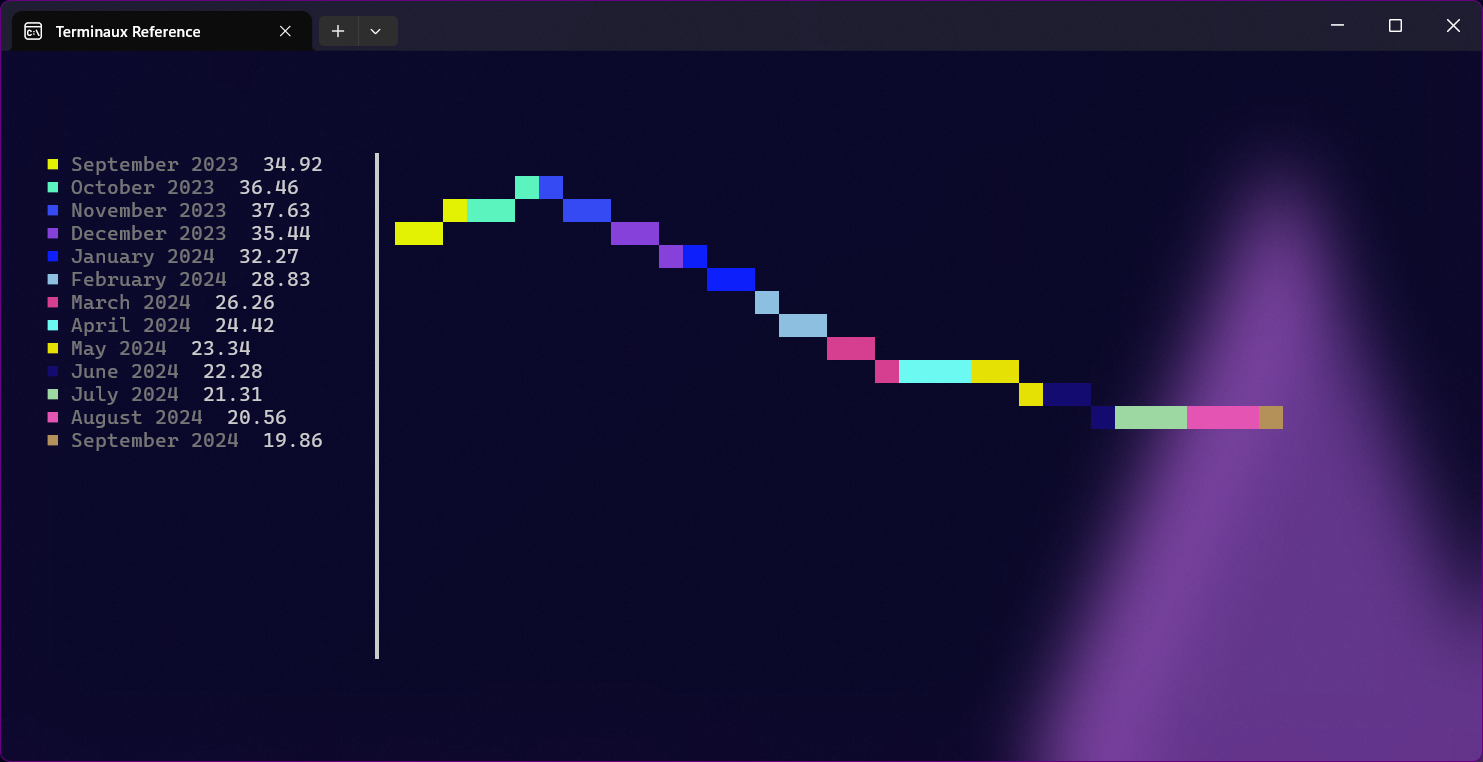

Line Charts

This allows you to render a line chart that shows you rises and falls of a specific data to the console.

var chart = new LineChart()
{
    InteriorWidth = ConsoleWrapper.WindowWidth - 4,
    InteriorHeight = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Showcase = true,
    Elements =
    [
        new()
        {
            Name = "September 2023",
            Value = 34.92,
        },
        new()
        {
            Name = "October 2023",
            Value = 36.46,
        },
        new()
        {
            Name = "November 2023",
            Value = 37.63,
        },
        new()
        {
            Name = "December 2023",
            Value = 35.44,
        },
        new()
        {
            Name = "January 2024",
            Value = 32.27,
        },
        new()
        {
            Name = "February 2024",
            Value = 28.83,
        },
        new()
        {
            Name = "March 2024",
            Value = 26.26,
        },
        new()
        {
            Name = "April 2024",
            Value = 24.42,
        },
        new()
        {
            Name = "May 2024",
            Value = 23.34,
        },
        new()
        {
            Name = "June 2024",
            Value = 22.28,
        },
        new()
        {
            Name = "July 2024",
            Value = 21.31,
        },
        new()
        {
            Name = "August 2024",
            Value = 20.56,
        },
        new()
        {
            Name = "September 2024",
            Value = 19.86,
        },
    ],
};
TextWriterRaw.WriteRaw(chart.Render());

Wins and Losses

This chart allows you to visualize wins and losses for a company or for other things in your console.

var chart = new WinsLosses()
{
    InteriorWidth = ConsoleWrapper.WindowWidth - 4,
    InteriorHeight = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Showcase = true,
    Elements =
    [
        ("January 2023", new(){ Name = "Win", Value = 85.29 }, new(){ Name = "Loss", Value = 43.46 }),
        ("February 2023", new(){ Name = "Win", Value = 86.22 }, new(){ Name = "Loss", Value = 44.22 }),
        ("March 2023", new(){ Name = "Win", Value = 89.32 }, new(){ Name = "Loss", Value = 40.20 }),
        ("April 2023", new(){ Name = "Win", Value = 90.01 }, new(){ Name = "Loss", Value = 39.85 }),
        ("May 2023", new(){ Name = "Win", Value = 89.43 }, new(){ Name = "Loss", Value = 42.02 }),
        ("June 2023", new(){ Name = "Win", Value = 87.49 }, new(){ Name = "Loss", Value = 46.22 }),
    ],
};
TextWriterRaw.WriteRaw(chart.Render());

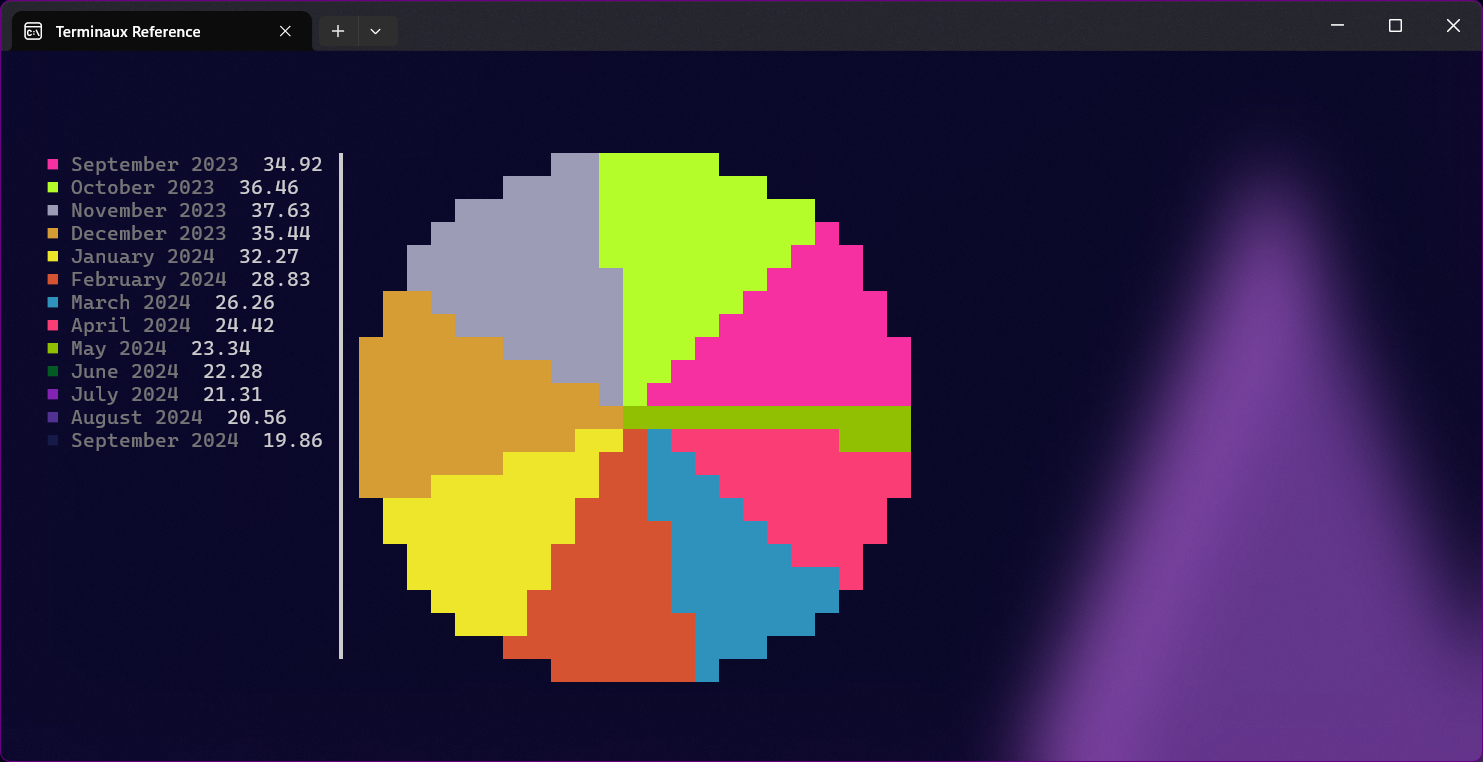

Pie charts

Pie charts visualize data, like all other data charts, but in a pie instead of the usual bars. It uses the values to calculate the arc angles of all elements to then display the whole pie to the console.

var chart = new PieChart()
{
    Width = ConsoleWrapper.WindowWidth - 4,
    Height = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Showcase = true,
    Elements =
    [
        new()
        {
            Name = "September 2023",
            Value = 34.92,
        },
        new()
        {
            Name = "October 2023",
            Value = 36.46,
        },
        new()
        {
            Name = "November 2023",
            Value = 37.63,
        },
        new()
        {
            Name = "December 2023",
            Value = 35.44,
        },
        new()
        {
            Name = "January 2024",
            Value = 32.27,
        },
        new()
        {
            Name = "February 2024",
            Value = 28.83,
        },
        new()
        {
            Name = "March 2024",
            Value = 26.26,
        },
        new()
        {
            Name = "April 2024",
            Value = 24.42,
        },
        new()
        {
            Name = "May 2024",
            Value = 23.34,
        },
        new()
        {
            Name = "June 2024",
            Value = 22.28,
        },
        new()
        {
            Name = "July 2024",
            Value = 21.31,
        },
        new()
        {
            Name = "August 2024",
            Value = 20.56,
        },
        new()
        {
            Name = "September 2024",
            Value = 19.86,
        },
    ],
};
TextWriterRaw.WriteRaw(chart.Render());

Chart of Lines

This kind of chart demonstrates how an item has increased or decreased over either time periods or, more generally, iterations. It uses lines for such demonstration.

var chart = new LinesChart()
{
    Width = ConsoleWrapper.WindowWidth - 4,
    Height = ConsoleWrapper.WindowHeight - 8,
    Left = 2,
    Top = 4,
    Showcase = true,
    Elements =
    [
        ("Android 12", [
            new() { Name = "3/2024", Value = 16.97 },
            new() { Name = "4/2024", Value = 16.42 },
            new() { Name = "5/2024", Value = 16.01 },
            new() { Name = "6/2024", Value = 15.80 }
        ]),
        ("Android 13", [
            new() { Name = "3/2024", Value = 26.26 },
            new() { Name = "4/2024", Value = 24.42 },
            new() { Name = "5/2024", Value = 23.34 },
            new() { Name = "6/2024", Value = 22.28 }
        ]),
        ("Android 14", [
            new() { Name = "3/2024", Value = 16.28 },
            new() { Name = "4/2024", Value = 20.38 },
            new() { Name = "5/2024", Value = 23.46 },
            new() { Name = "6/2024", Value = 25.67 }
        ]),
    ],
};
TextWriterRaw.WriteRaw(chart.Render());
