Geometric Shapes

Drawing geometric shapes to the console!

Terminaux also provides a wide assortment of classes that allow you to render different geometric shapes to the console easily. You can select one of the following shapes to render to your console:

  • Rectangle

  • Square

  • Triangle

  • Trapezoid

  • Parallelogram

  • Circle

  • Ellipsis

They implement the IGeometricShape interface to allow you to iteratively render different geometric shapes from arrays of shapes that you can loop through to speed up the process and to allow you to implement your custom geometric shape.

To render a geometric shape, such as a rectangle, to the console, you must create a new instance of a shape class, providing the width and the height of the shape, as well as the position that tells Terminaux where to render the shape, whether to render the outline or the full shape (optional), and the selected color (optional).

It's up to your shape class to have a constructor that doesn't necessarily require all the shape arguments as outlined above.

After creating a new instance, just call Render() on the shape instance.

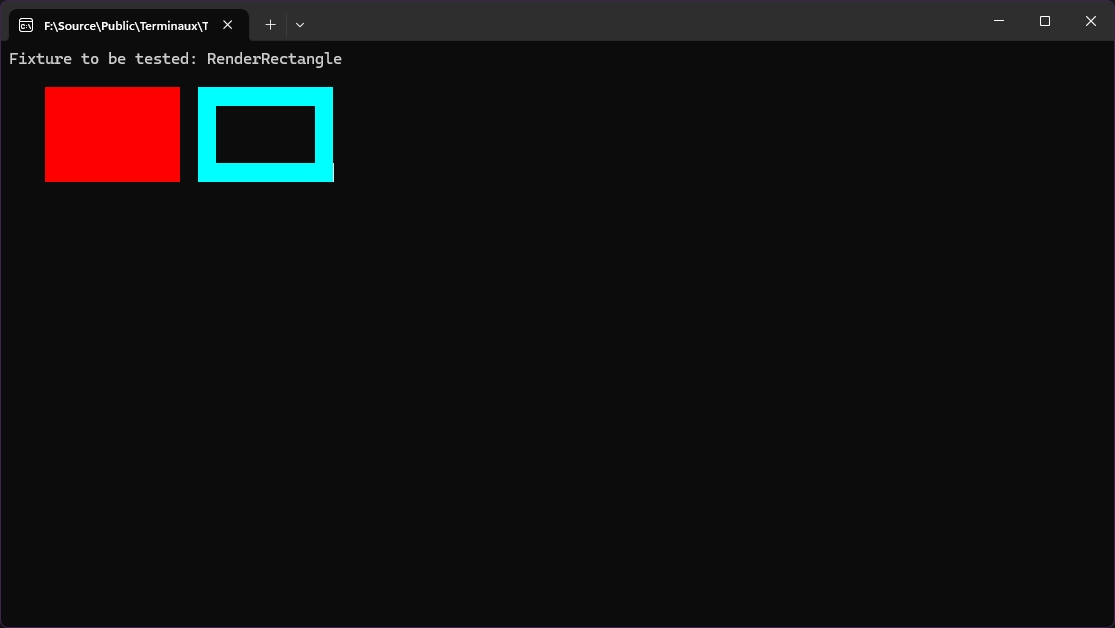

RenderRectangle.cs
var rect = new Rectangle(15, 5, 4, 2, true, ConsoleColors.Red);
var rect2 = new Rectangle(15, 5, 21, 2, false, ConsoleColors.Aqua);
TextWriterRaw.WriteRaw(rect.Render());
TextWriterRaw.WriteRaw(rect2.Render());

For general graphics tools, it provides the following functions found in the GraphicsTools class in the Terminaux.Graphics namespace:

RenderLine(): Renders a colored line using the .

RenderLineSmooth(): Renders a colored anti-aliasedline using .

Rendering geometric shapes and lines require that you either buffer it to your , or call the TextWriterRaw.WriteRaw() function, passing it the resultant string.

Bresenham's line algorithm
Xiaolin Wu's line algorithm
screen part
